Work Done Value - (Rs. in Cr.) 152.09
Completed Month/Year : Dec-2014

Location of proposed Lahchura Dam

• Project Name: Const. of Spillway Ch. Charan Singh Lahchura Dam, Irrigation Deptt. Distt- Mahoba (Uttar Pradesh)
• District : Mahoba
• Tehsil : Mauranipur
• Latitude :25° 10'45"N
• Longitude : 79° 16'E
• Source River : Dhasan
• Catchment area : 9500 Sq. Kms.
• Storage Capacity : 15.90 MCM

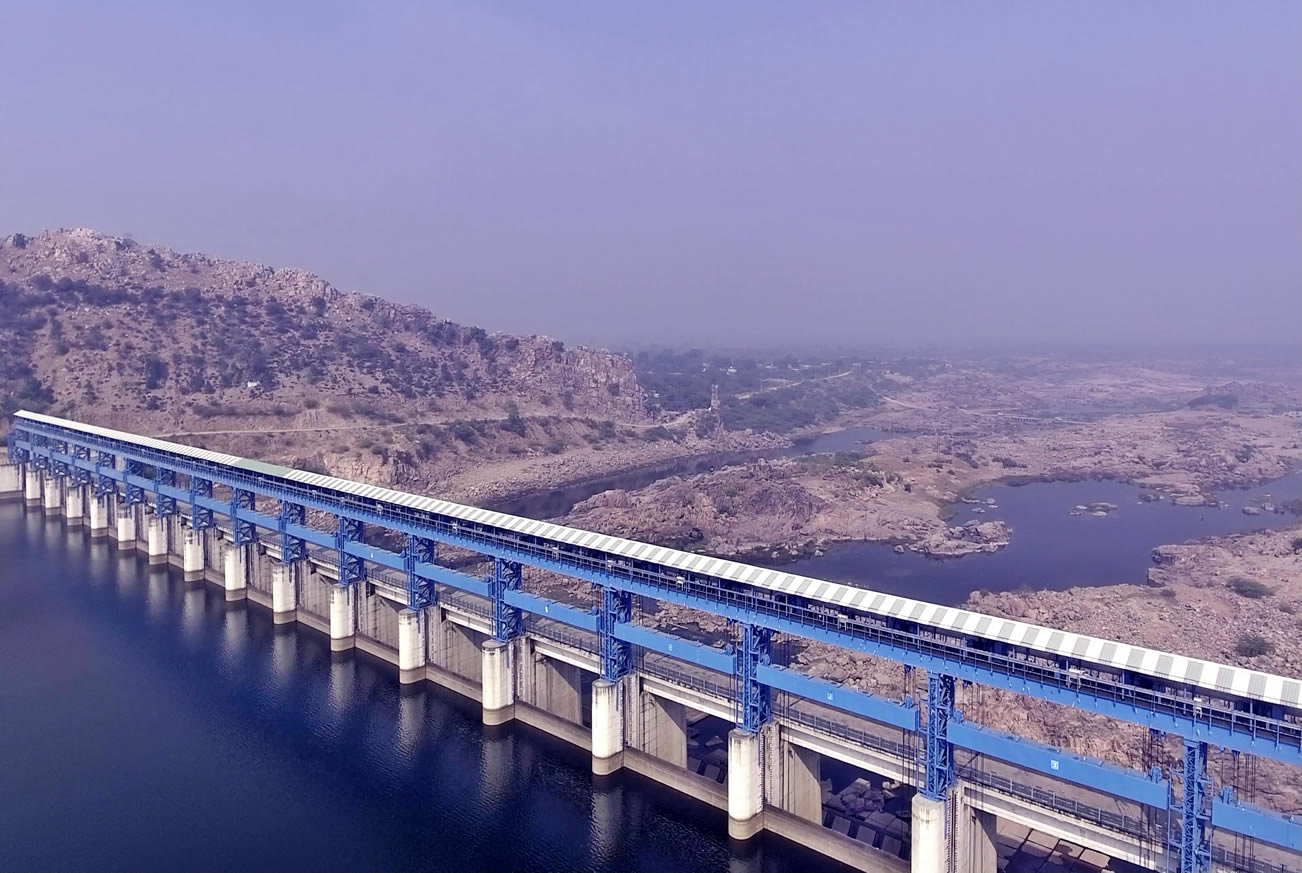

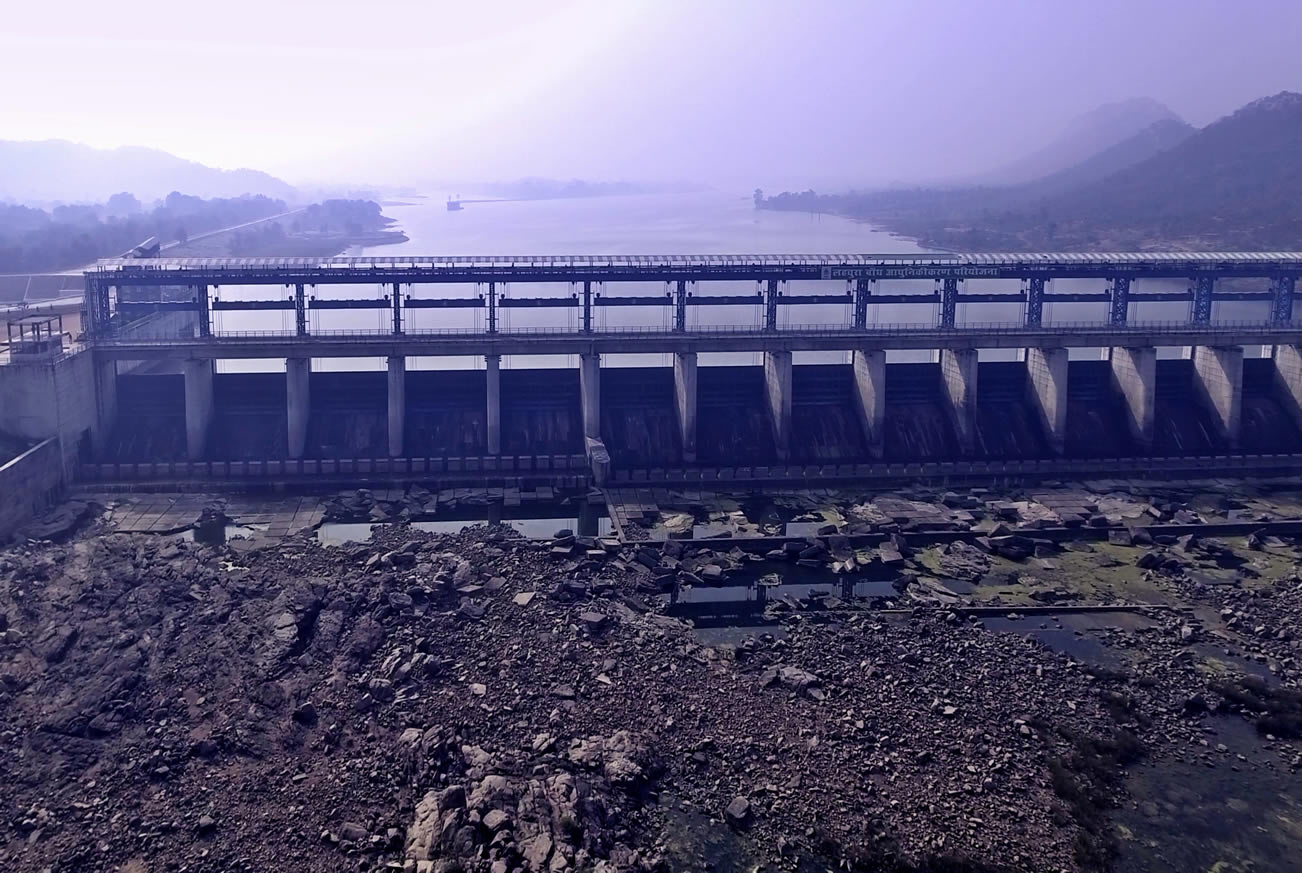

Dam (Barrage)

• Total Length : 346.5 M.
• Maximum Height : 22.70 M.
• Crest Level : 175.50 M.
• Nos. of Gates & Size : 17 Nos. (18.0 M x 7.3 M)
• Pier width : 2.5 M.
• Clear water way : 306 M.
• Full Reservoir Level : 182.3 M.
• Highest Flood Level : 184.7 M.
• Design Flood : 18000 Cumecs

Afflux Bund

• Length of right afflux Bund : 1000 M.
• Top of Bund : 189.70 M.

• Culturable command Area : 97,169 Hect.

• Submergence Area :2185 Ha.

Proposed Irrigation

• Kharif : 14,575 Hect.
• Rabi : 31,910 Hect.

---

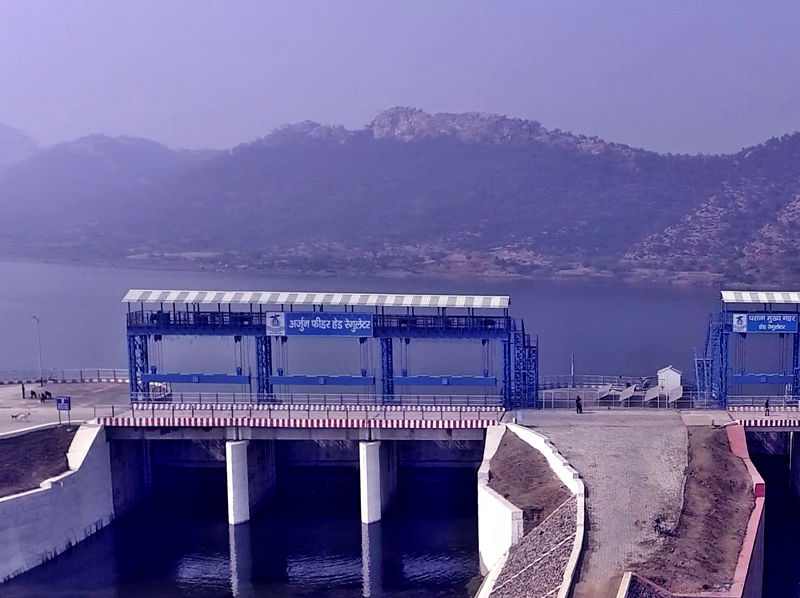

Discharge and size

• Dhasan Head Regulator: 37.57 cumec 1 Nos. gate (8.0m. X 3.858m.)
• Arjun feeder head Regulator: 73.60 cumec 3 Nos. gate (12.0m. X 2.86m.)
