Work Value - (Rs. in Cr.) 250.06

• Project Name: Const of Bhaurat Dam Project
• Type of the project : Irrigation and Drinking water supply
• Source River : Jamini
• Nearest Village/Tehsil/District : Bhira Village/ Mehrauni Tehsil/ Laitpur District
• Latitude :24°35 ‘10” N
• Longitude : 78° 40’00“E

---

Hydrology

• Intermediate rain-fed catchment area between existing Parichha weir & dam site : 335.40 km square
• Water Availability : 70.55 mm³

---

River Diversion

• Type : Coffer Dam U/s and D/s with diversion channel

DAM

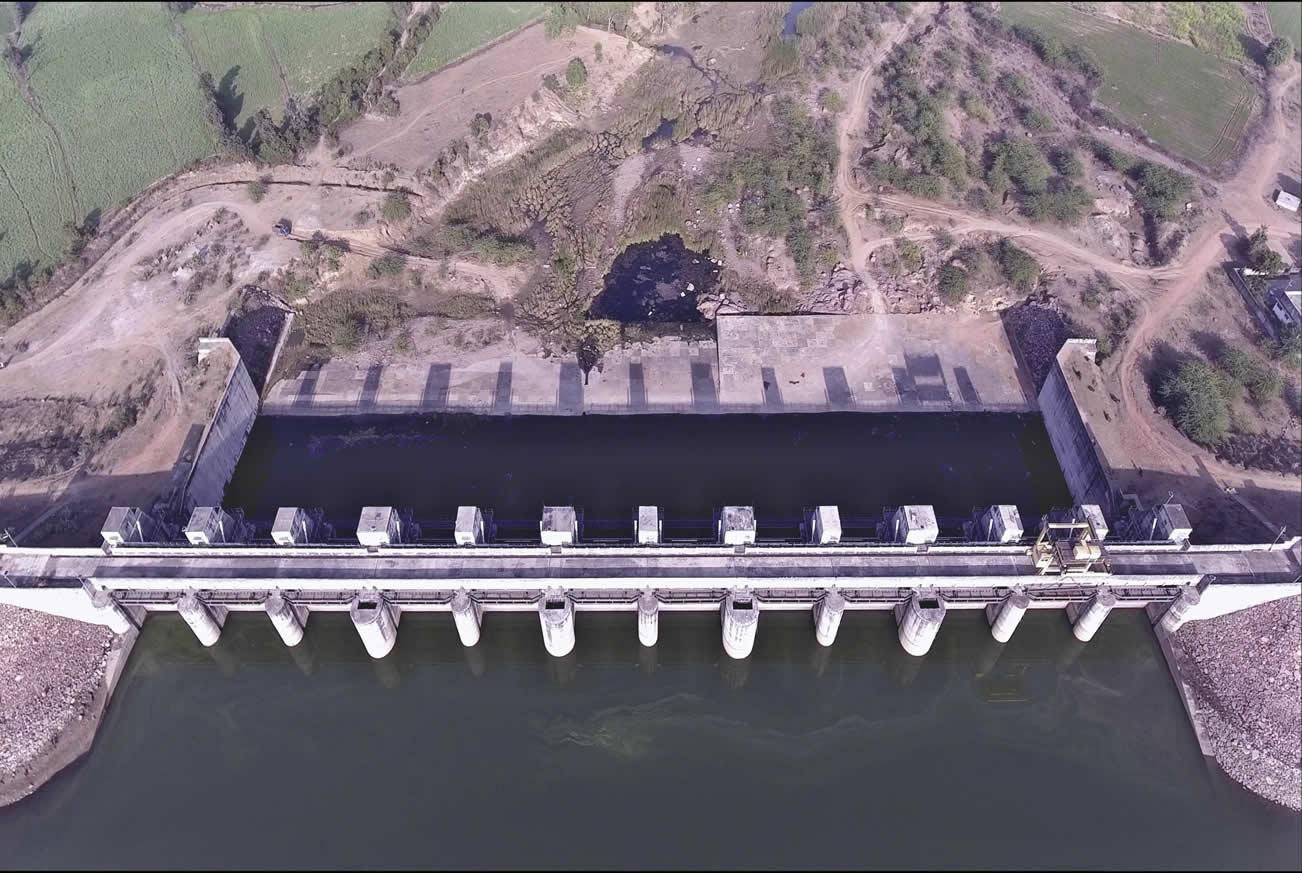

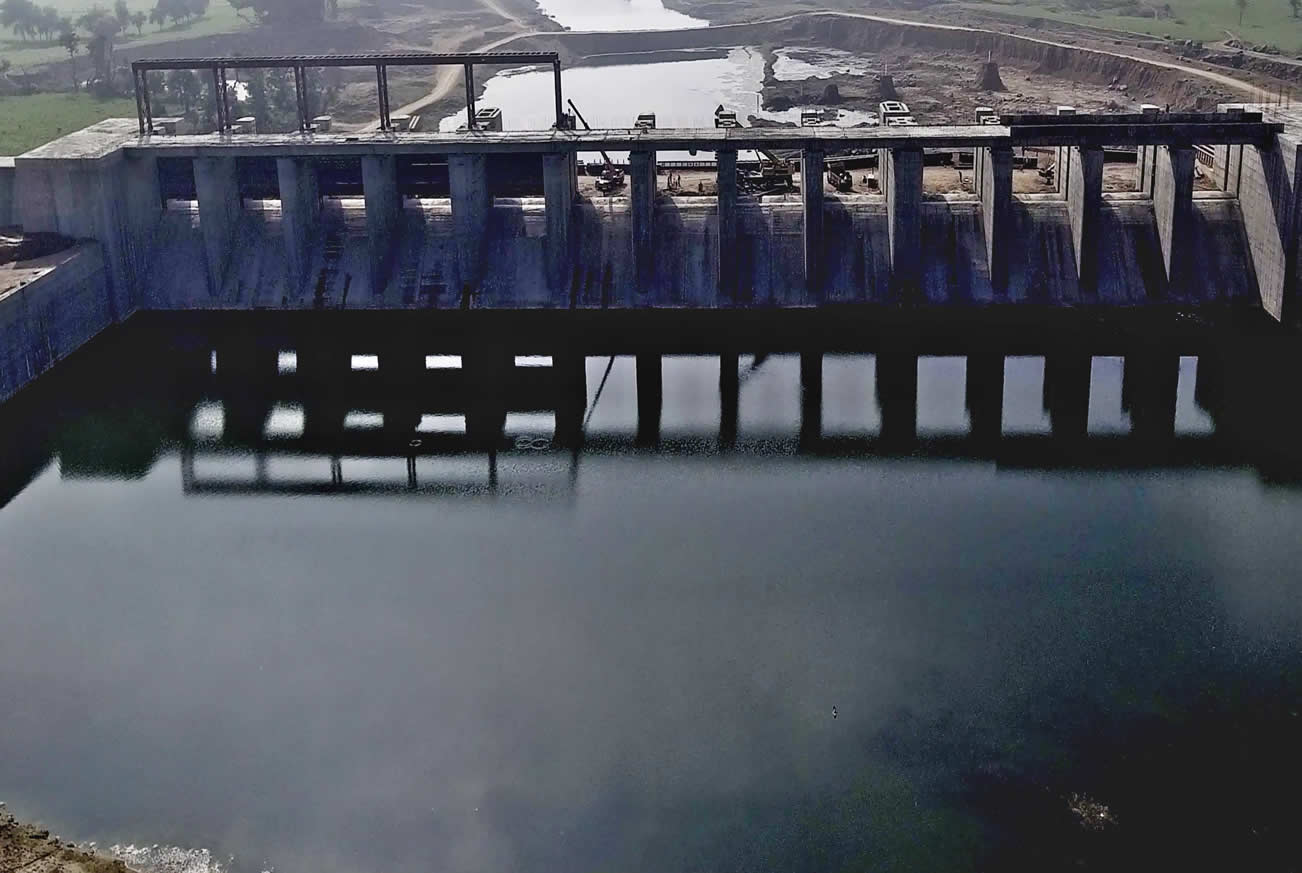

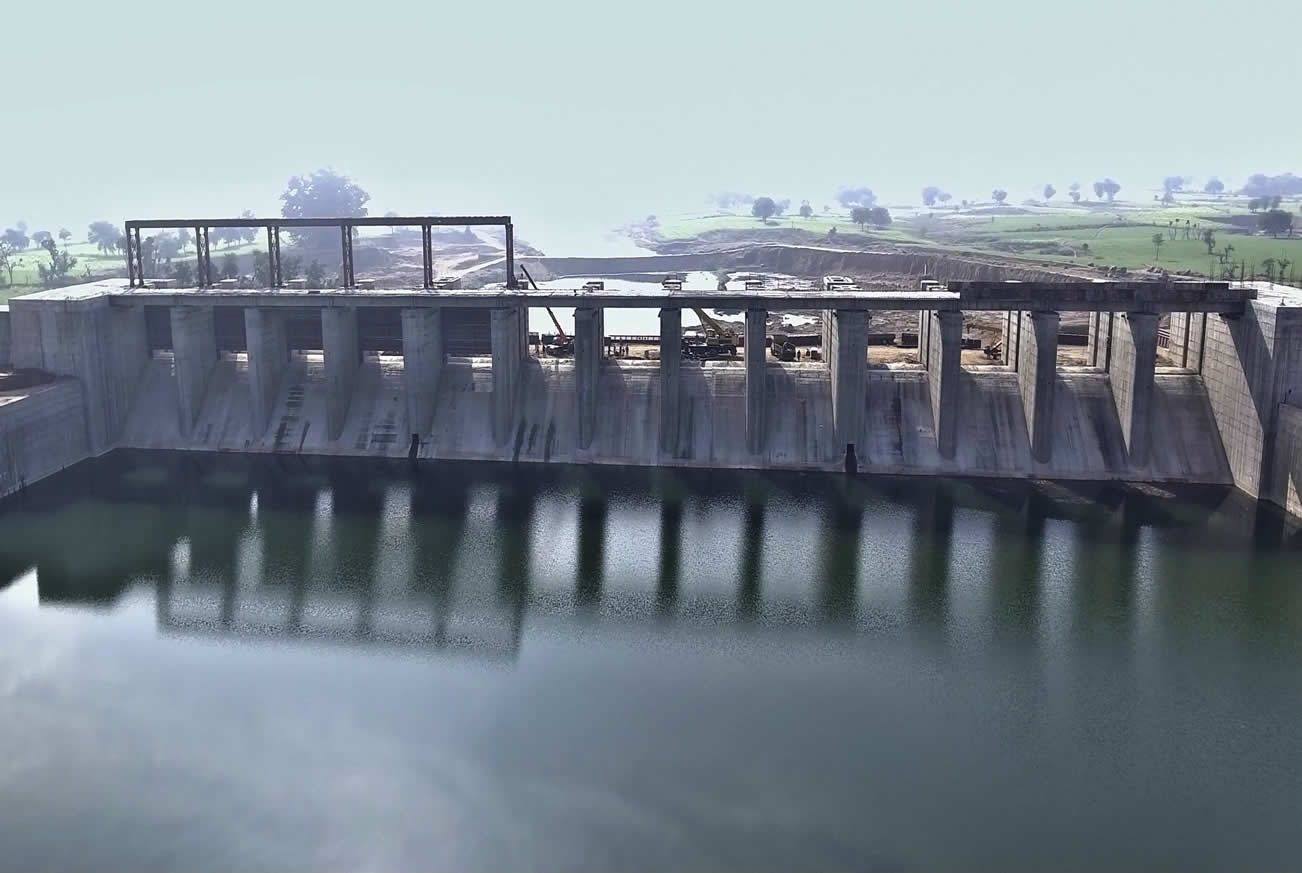

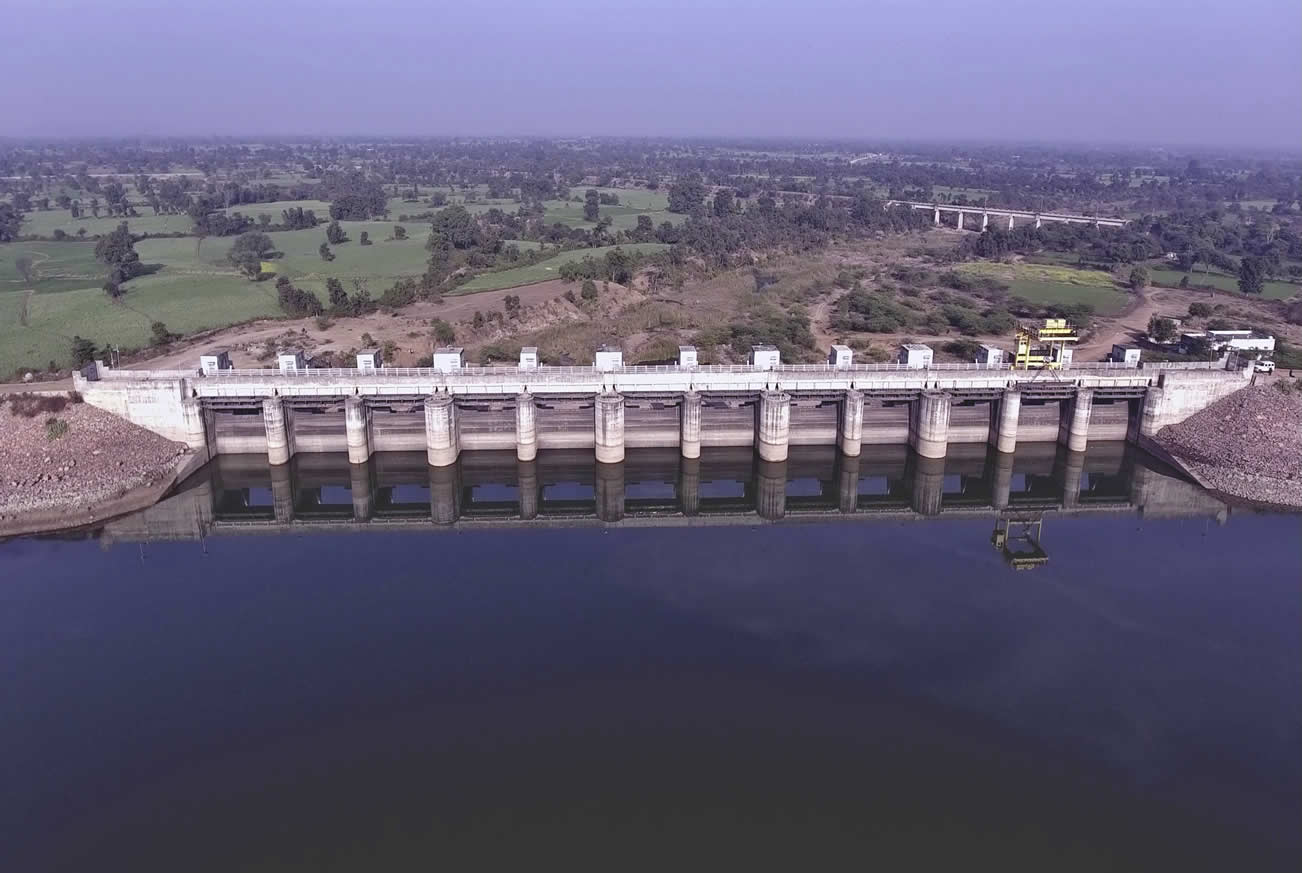

• Overflow: Gated ogee type spillway
• Length of overflow including piers : 165m.
• Bottom Level of Gate : EL. 354.70 m.
• Top Level of Gate : EL. 361.20m.
• Gate open size : 10.00 m (W)x6.50 m (H)
• No of Gates : 13
• Design Discharge : 500m³/s (Cumecs)
• Head Sluice discharge : 2NO.
  Right Head Sluice 0.5 Cumec
  Left Head Sluice 4.0 Cumec
• Earthen embankment : 2.35 Km. Long left bank earthen embankment
  2.40 Km. long right bank earthen embankment
• Top of Dam : EI. 363.10m
• Top width of Dam : 6.60m

Reservoir

• FRL : EI. 360.90 m
• MDDL : EI. 354.55 m
• Gross Storage : 45.08 Mm³
• Live Storage : 40.55 Mm³
• Storage of Drinking Water : 1 Mm³
• Storage of Irrigation : 56.22 Mm³

---

Irrigation

• CCA : 9850 Ha
