Salient Features of Singhpur Medium Irrigation
Work Done Value - (Rs. in Cr.) 46.97
Completed Month/Year : Sep-2016
Location of proposed Singhpur Medium Irrigation
- Project Name: Const. of balance work of Const. of concrete and earthen barrage including deck bridge, energy dissipation and head regulator work of Singhpur Barrage R.D. 0 to 4500 m (debatable)
- District : Chhatanpur,Madhya Pradesh
- Purpose : Irrigation
- Name of River : Umil
- Basin : Ganga
- Project Sharing : None
- Intercountry : None
- Interbasin : None
- Crest Level : 188.930 M.
- Work Started in 5 Year Plan : XI-Plan
- Completed in 5 year plan
- Project Approval Status : Planning Commission
- Year of Approval by Planning Commission : 2010
- Approved Cost (Rs. In cr) : 200.52
- Culturable Command Area (CCA) (th ha) : 6
- Ultimate Irrigation Potential (UIP) (th ha) : 10.03
- Potential Created (PC) (th ha)
- Project Covered under ERM Scheme : No
- Project Covered under CADA Scheme : No
- Project Covered under CADA Scheme : No
- Project Covered under AIBP Scheme : Yes
- Project Covered under Tribal Sub-Plan : No
- Project Covered under Drought Prone Area Programme (DPAP)
History and introduction
Singhpur Medium Irrigation Project of Madhya Pradesh envisages construction of barrage across river Urmil, a tributary of river Ken in Yamuna basin, with a left bank canal syatem to provide annual irrigation to 10,200 ha (kharif:4,800 ha + Rabi: 5,400 ha ) in Chhatarpur district of Madhya Pradesh.
The project was originally planned in the year 1979-80 to use MP’s share of Urmil river waters for provided irrigation facilities in
the down stream areas of Urmil dam in chhatarpur district of Madhya Pradesh.
The project proposes to use MP’s share of Urmil water and water from the independent catchment of 257.71 sq. km between
Urmil dam and Singhpur barrage in Madhya Pradesh territory and MP’s share of water kept as up stream reserve which is proposed
to be regulated through carry over capacity as provided in Urmil dam for providing im Urmil assured kharif and Rabi irrigation.
Singhpur Medium irrigation project (Madhya Pradesh) envisaged construction of following compionents- 4259.50 metre long earthen dam (on either flank) with maximum height of 12.00 metre.
Singhpur Medium irrigation project (Madhya Pradesh) envisaged construction of following compionents- 4259.50 metre long earthen

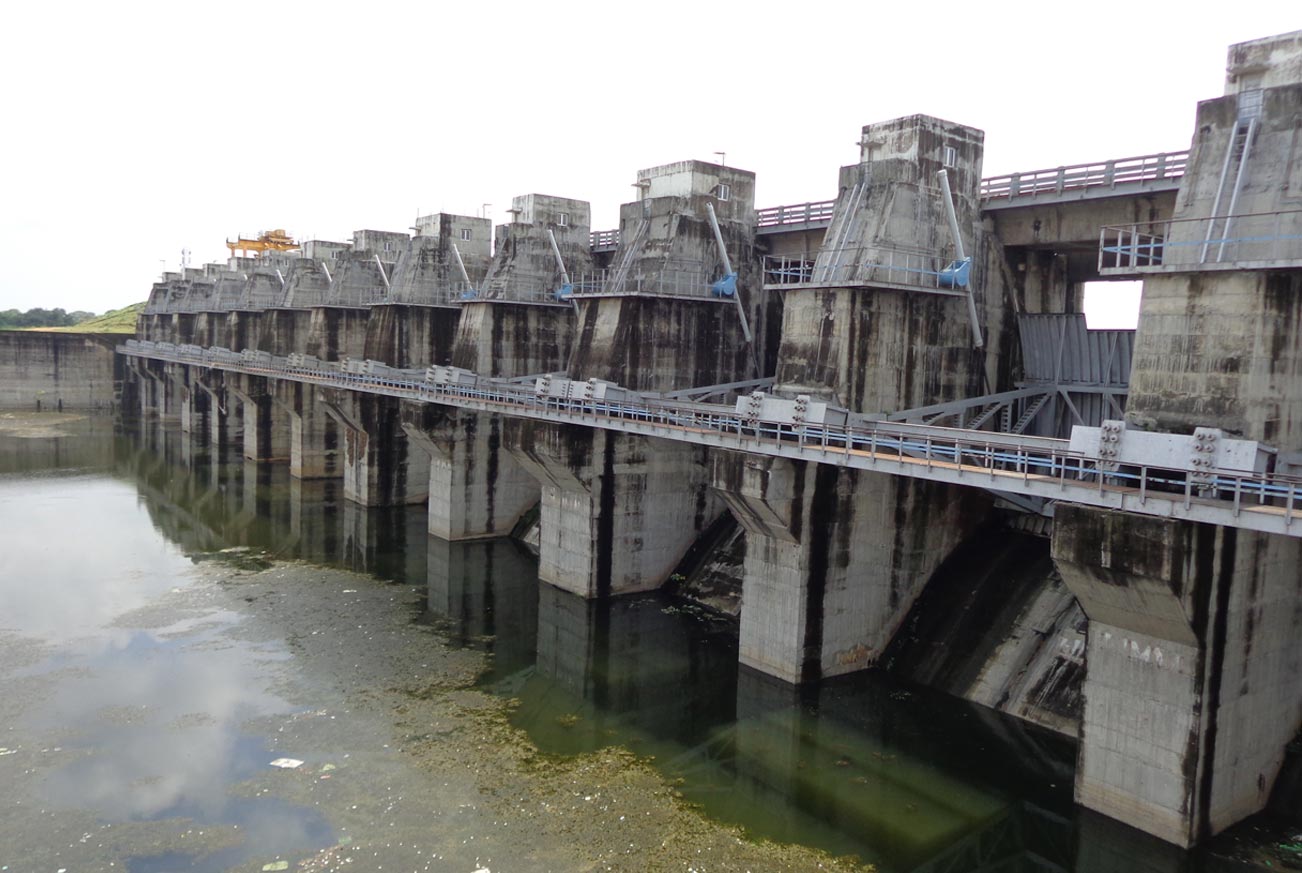

dam (on either flank) with maximum height of 12.00 metre. 240.50 metre long concrete barrage with 12 nos. gates of size 12.25 m X 9.60 m with
a maximum discharge capacity of 7,528 cumecs.
A left bank main canal 26.50 km long with head discharge of 7.00 cumecs with 104 km of distibutary/ minors to irrigate 10,200 ha annually with an irrigation intensity of 170%.
Techno-Economic Appraisal
The project was accepted by TAC of mo WR in its 101st meeting held on 30.11.2009 and investment clearance accorded by Planning Commission vide letter No. 20(12)/2010-WR dated 25.03. 2010 for an estimated cost of Rs.200.52 crore at PL 2009 (cost of I-work is Rs 189.64 crore) to irrigate 6,000 ha(CCA)/10,200 ha (Ann.Irr.).
Present Status
The project was started in the year 2007-08 and in the year 2011-12 it is was brought under AIBP and its target date of completion is 2014. The barrage and canal network is under construction and so far no irrigation potential is created.
