Location of Arjun Feeder Head Regulator

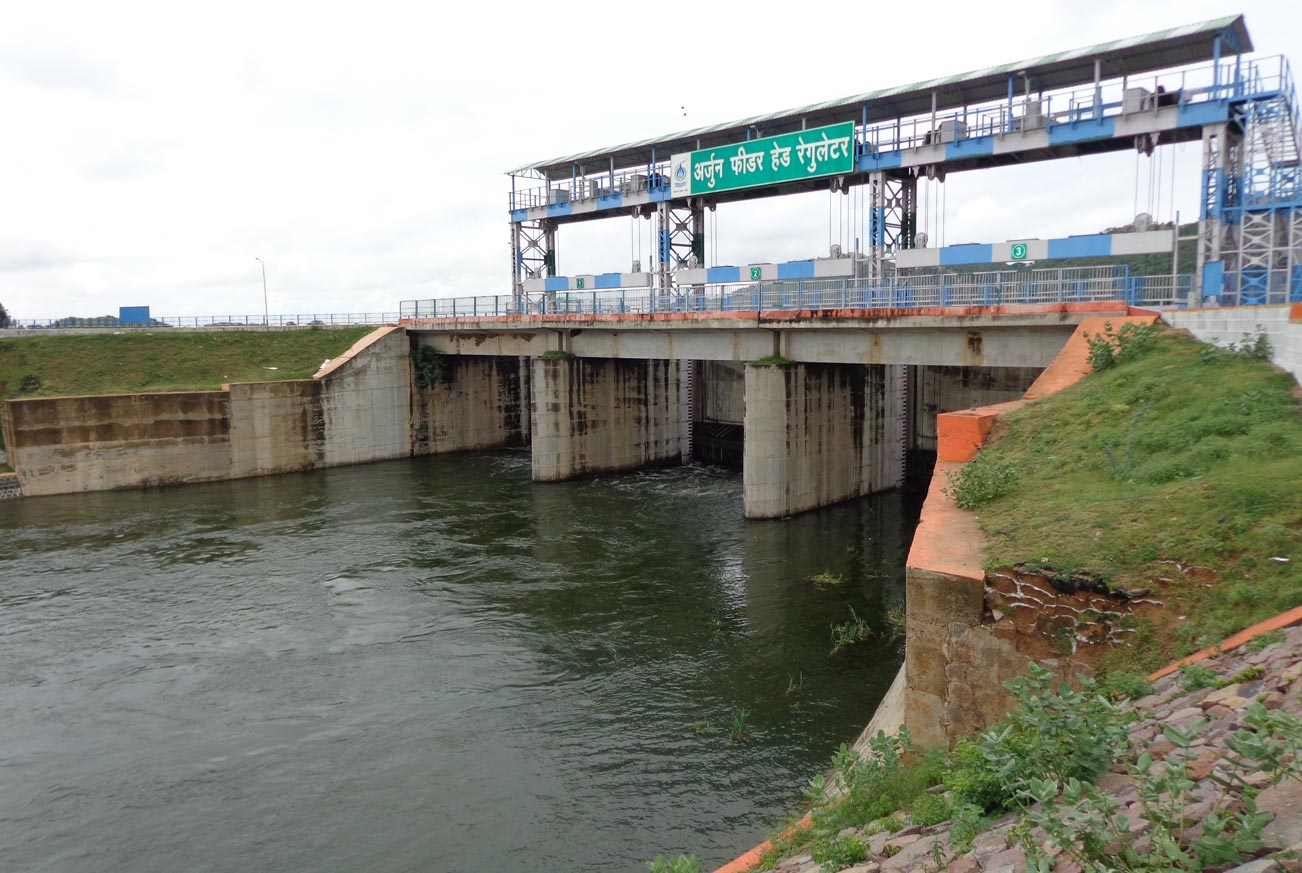

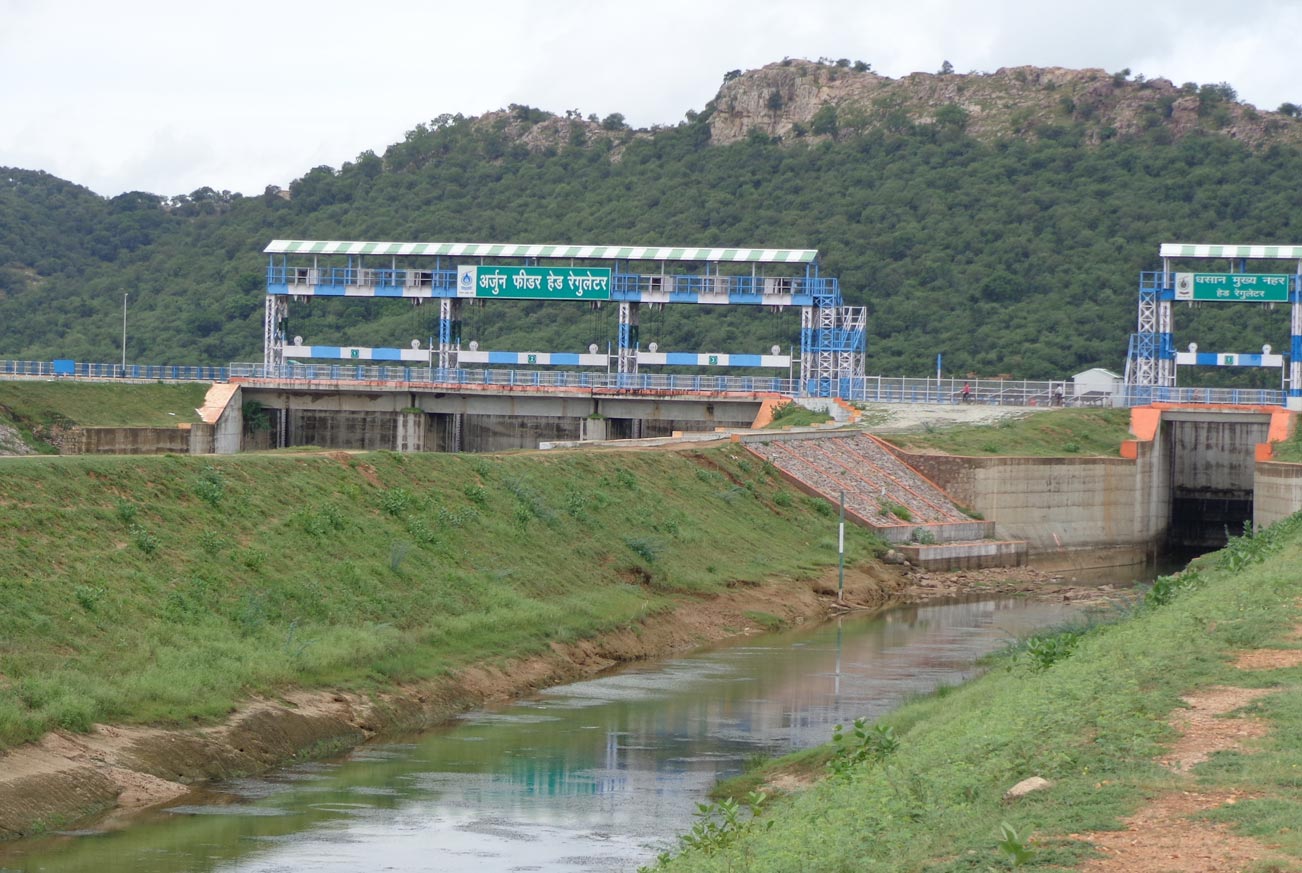

• Project Name: Arjun Feeder Head Regulator

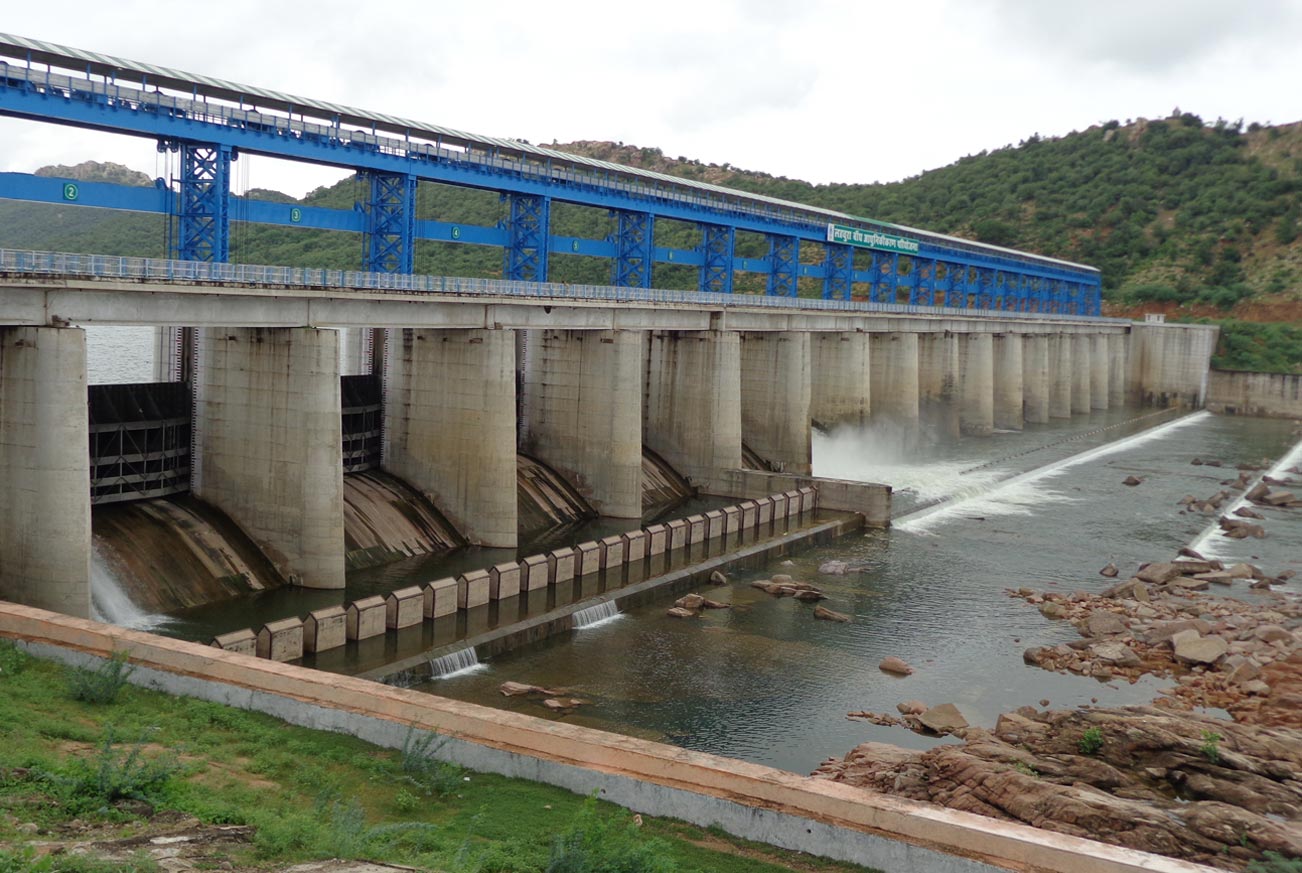

• Location of Head Works : Lahchura weir in U.P. 1000 Meter downstream of existing Lahchura Dam weir
• Command of the Project : Command of Arjun Chandrawal & Kabrai Dam.

---

Culturable Commanded area

• Arjun Dam : 59,722 Hact.
• Chandrawal Dam : 19,045 Hact.
• Kabrai Dam (Including new area of 54,087 Ha. : 70,997 Hact.
• Total : 1,49,764 Hact.

• Existing Cropping Pattern (Rabi) : 15,104 Hact.

Proposed extra area of irrigation

		Rabi	Kharif	Total
Arjun Dam	:	6283 Hect.	6109 Hect.	12392 Hect.
Chandrawal Dam	:	1117 Hect.	1500 Hect.	2617 Hect.
Kabrai Dam	:	18018 Hect.	11354 Hect.	29372 Hect.
Total	:	25418 Hect.	18963 Hect.	44381 Hect.
			Grand Total :	59485 Hect.

---

Water requirement of Arjun Sahayak Feeder at Lahchura head

• Arjun Dam : 7013 Hect.m.
• Chandrawal Dam : 2189 Hect.m.
• Kabrai Dam : 16667 Hect.m.
• Drinking Water : 2000 Hect.m.
• Total : 27869 Hect.m.

• Pond level of Lahchura weir : R.L. 182.30 m.

Length of feeder canal

• From Lahchura to Arjun Dam : 38.60 Km.
• From Arjun to Kabrai Dam : 31.30 Km.
• F.S.L of feeder at head : R.L. 181.97 m.
• Bed level of Feeder Head : R.L. 179.74 m.
